In engineering, construction, and metal fabrication industries, calculating the weightis a fundamental task. Knowing the exact weight is crucial for shipping, structural design, cost estimation, and inventory management. This is where a weight calculator becomes indispensable.
A weight tool that helps determine the weight of metal objects based on their material density, shape, and dimensions. While such tools make a process quick and easy, understanding the underlying formulas, densities, and shape factors is essential for precise calculations.The following Versatile tool that calculates these types of metals like;

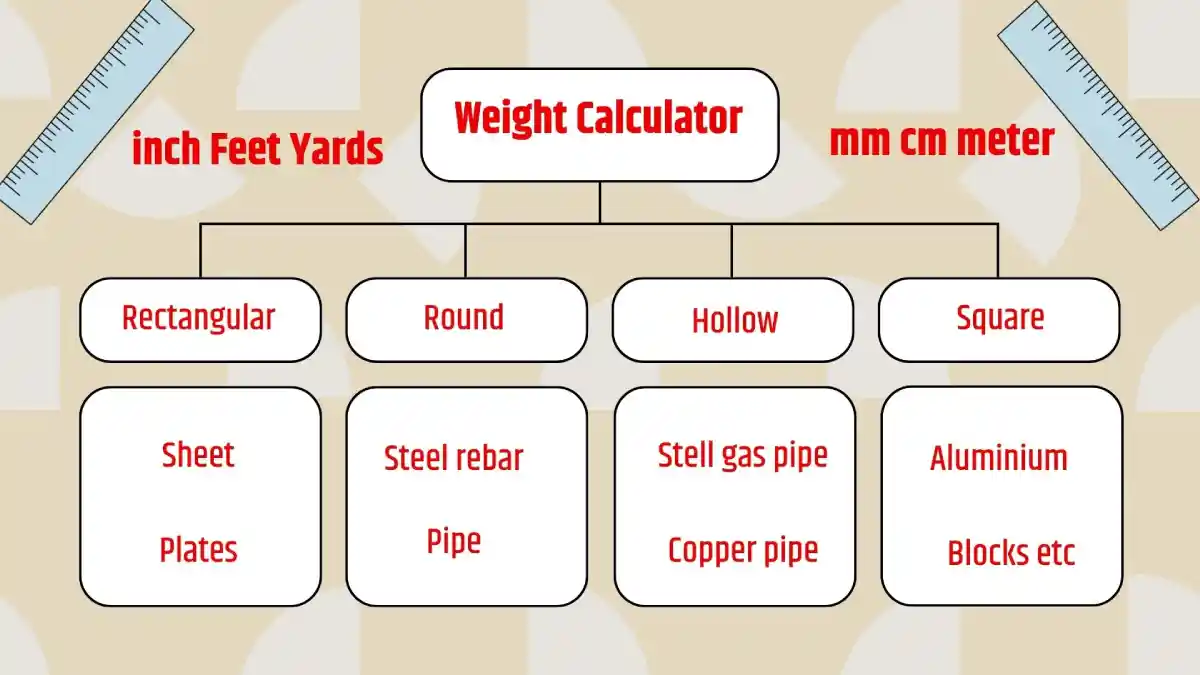

Rectangular Plate, Round rod/cylinder, Hollow cylinder/Pipe, Square tube, sheet plate, and for sphere weight.
Table of contents
A metal weight calculator estimates how much a metal object weighs based on density, shape dimension and unit conversion.
The converter first determines the volume of the selected shape, then multiplies that volume by their densities.
Weight = Volume × Density
This makes the tool useful for a wide range of metals, including steel, SS, Al, Cu, brass, bronze, lead, titanium, and others
| Shape | Material | Unit | Input values | Expected weight |
|---|---|---|---|---|
| Rectangular Plate / Block | Steel | mm | Length = 1000, Width = 500, Height = 10 | 39.25 kg |
| Round Rod / Cylinder | Steel | mm | Radius = 100, Height = 2000 | 493.23 kg |
| Hollow Cylinder / Pipe | Steel | mm | Outer Diameter = 100, Inner Diameter = 80, Height = 2000 | 44.39 kg |
| Square Tube | Steel | mm | Outer Side = 100, Inner Side = 80, Length = 2000 | 56.52 kg |
| Sheet / Plate | Aluminum | mm | Length = 3000, Width = 1000, Thickness = 20 | 162.00 kg |
| Sphere | Steel | mm | Radius = 200 | 263.04 kg |
Calculating weight is not just about numbers—it impacts multiple aspects of metalworking and engineering projects:
Without proper tool, projects can face budget overruns, structural failures, or shipment issues.
Important note: in this current tool, the round rod and sphere use radius, not diameter, for the first input.
1. Density of Metals
Different metals have different densities. For the same size part, steel will not weigh the same as aluminum or copper.
Examples:
2. Shape
Two metal items with the same length may weigh very differently if one is solid and the other is hollow.
For example:
3. Dimensions
Even a small change in thickness, diameter, or length can cause a noticeable difference in total.
4. Alloy variation and finish, because density may vary slightly depending on: exact alloy, grade, coating, plating, manufacturing process
General Formula for Solid Metals
Where
Example: Weight of a steel block (2m × 0.5m × 0.3m)
Volume = 2 × 0.5 × 0.3 = 0.3 m³
Density (Steel) = 7850 kg/m³
Weight = 0.3 × 7850 = 2355 kg
Rectangle Plate Block
Cylindrical Rod / Round Bar
Where ( r ) = radius, ( h ) = height/length
Hollow Cylinder / Pipe:
Where ( R ) = outer radius, ( r ) = inner radius
Sphere
Sheet/plate
Rectangular Plate / Block
Example: 3m × 1m × 0.02m aluminum sheet
Volume = 3 × 1 × 0.02 = 0.06 m³
Weight = 0.06 × 2700 = 162 kg
Round Rod / Cylinder
Example: Steel rod, 0.1 m radius, 2 m length
Volume = 3.1416 × 0.1² × 2 = 0.06283 m³
Weight = 0.06283 × 7850 ≈ 492.5 kg
Hollow Cylinder / Pipe
Example: Copper pipe, outer radius 0.05 m, inner radius 0.04 m, length 2 m
Volume = 3.1416 × 2 × (0.05² – 0.04²) = 0.057 m³
Weight = 0.057 × 8960 ≈ 51 kg
Sheet plate
Where ( T ) = thickness
Sphere
Below are standard approximate densities
| Metal | Density (kg/m³) | Notes |
| Steel | 7850 | Common structural metal |
| Stainless Steel | 8000–8050 | Corrosion resistant |
| Aluminum | 2700 | Lightweight and widely used |
| Copper | 8960 | Conductive, common in wiring and piping |
| Brass | 8530 | Copper-zinc alloy |
| Bronze | 8800 | Copper-tin alloy |
| Lead | 11340 | Very dense, toxic material |
| Titanium | 4500 | Strong and lightweight |
| Nickel | 8900 | Used in specialty alloys |
| Zinc | 7130 | Common in coatings and cast parts |
| Magnesium | 1350 | Very lightweight metal |
This tool is built for practical use. To get an accurate result, follow these steps:
1. Select given shape:
Choose a shape that best matches your metal part:
2. Select the material of metal
Pick the metal from the dropdown list. The tool automatically uses the matching density value.
3. Choose the input unit, for reference see weight units
You can enter dimensions in:
This tool converts the values internally before calculation. This tool does not support old Indian unit Maund
4. Enter the dimensions
Type the required measurements for the selected shape.
5. Click calculate
The tool will:
6. Review the steps
The machine also shows the formula and a step-by-step breakdown so users can verify the result.
Volume = 3 × 1 × 0.02 = 0.06 m³
Weight = 0.06 × 2700 = 162 k
Volume = π × 0.1² × 2 = 0.06283 m³
Weight = 0.06283 × 7850 = 493.2 kg
Volume = π × 2 × (0.05² − 0.04²)
Volume = π × 2 × (0.0025 − 0.0016)
Volume = π × 2 × 0.0009
Volume ≈ 0.00565 m³
Weight = 0.00565 × 8960 ≈ 50.6 kg
A good tool saves time and reduces manual errors.
Fast estimation:
You can get results in seconds without doing shape formulas by hand.
Better quoting
Suppliers, contractors, and fabricators can estimate material requirements more confidently.
Easier planning
It supports purchasing, cutting, transport planning, and workshop preparation.
Unit flexibility
Users can enter values in metric or imperial units without manual conversion.
Useful for many industries
For example, construction, fabrication, machining, engineering, metal supply, DIY projects
A weight tool is very useful, but it still gives an estimated value, not a certified measured weight.
It may not include:
Important note: If a part has a custom profile or complex shape, the real weight may differ from the calculator result. For critical engineering or production decisions, always verify with:
Measure carefully
Small input errors can create large weight differences, especially in thickness and diameter.
Use the correct geographic shape
Do not choose a solid shape for a hollow item.
Check whether a value should be radius or diameter
For round formulas, always follow the input guidance exactly by this tool.
Use the right density while doing manual math.
Different alloys of the same metal can vary slightly in density.
Keep units consistent
A good tool converts units internally, but the entered value must still match the selected unit.
Review hollow sections carefully
For pipes and square tubes, the inner dimension must be correct or the result will be inaccurate.
It is useful for:
Whether you are checking a steel block, aluminum sheet, copper pipe, or brass rod, this calculator makes the process easier and faster for you.
Conclusion
A metal weight calculator is a practical tool for anyone who works with metal dimensions, metal density, and material planning. By combining volume formulas with standard material densities, it helps estimate the weight of common metal shapes quickly and clearly. For the best results, choose the correct shape, enter accurate dimensions, and use the right material density.
If your goal is to calculate metal weight accurately across different shapes and materials, this type of tool provides a simple and dependable starting point. aluminum weight calculator
It supports rectangular plate or block, round rod or cylinder, hollow cylinder or pipe, square tube, sheet or plate, and sphere.
You can enter values in mm, cm, m, inches, feet, or yards. This tool converts them internally before calculating mass.
The calculator uses: Weight = Volume × Density.
The only thing that changes from shape to shape is the volume formula.
It uses standard average densities for common metals such as steel, stainless steel, aluminum, copper, brass, bronze, lead, and titanium.
Make sure you selected the correct shape, unit, material, and dimensions. A small input mistake can create a large weight error.
Use exactly what your calculator asks for. If your version is based on radius for round rod or sphere, enter radius, not diameter.
Fabricators, engineers, estimators, contractors, suppliers, students, and DIY users can all use it for quick metal weight checks.
Steel weighs approximately 0.1286 kg per cubic inch.
